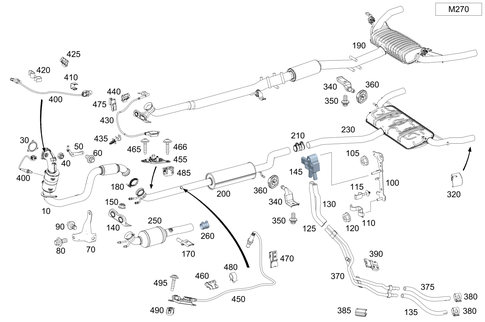

Exhaust System Used on Four-Cylinder Gasoline Vehicles for 2016 Mercedes-Benz CLA 250

Front.

Front.

Between exhaust gas turbocharger and exhaust line. Between catalytic converter and turbocharger. Exhaust system at turbocharger.

To exhaust pipe.

Holder to exhaust gas line. M8X20
Diameter: 8mm
Strength / hardness class: ST
Thread code letter: M
Thread pitch: 1,25mm. Holder mount. Exhaust pipe to turbocharger. To exhaust gas turbocharger.

Exhaust line to oil pan.

Pressure sensor.

FASTENING, EXHAUST HOSES
Diameter: 6,5mm
Inside diameter: 2X15mm
Material thickness: 1,5mm. Exhaust gas hose
Diameter: 6,5mm
Inside diameter: 2X15mm
Material thickness: 1,5mm.

Long. To pressure sensor.

Pressure sensor. Short.

Particulate filter. Differential pressure sensor. Left and right.

Rear exhaust system. Rear exhaust, left and right.

Exhaust Gas Line

Complete.

Center.

Center.

Left exhaust system at right exhaust system. Ø 70 mm. Center exhaust gas line to left and right rear exhaust gas line. Ø 70 MM. Front exhaust gas line to left rear exhaust gas line. Ø 70 MM. Exhaust line at center to exhaust line at left and right rear. Ø 70 mm. Exhaust pipe to rear exhaust pipe. Ø 70 MM.

Rear.

Rear.

Front exhaust pipe to rear exhaust pipe. Ø 65 MM. Front exhaust pipe to center exhaust pipe. Ø 65 MM. Front exhaust gas line to rear exhaust gas line. Ø 65 MM. Catalytic converter to rear exhaust pipe. Ø 65 MM. Central rear exhaust pipe to rear exhaust pipe. Ø 65 mm.

Left rear exhaust pipe. Left tailpipe trim.

Suspension, Exh. Gas Line

Left rear exhaust system to longitudinal member. Exhaust system to holder. Right. To rear axle. To exhaust line at left. Exhaust gas line.

To pressure sensor. Long, downstream of particulate filter.

Coolant hose to engine at top. 14/12 mm. Bleed line mount. 14/12 MM. At charging air intercooler. 14/12 mm. Hose mount. 14/12 MM.

CABLE MOUNTINGInside diameter: 3mmOutside diameter: 3,5mm. Cable bracketInside diameter: 3mmOutside diameter: 3,5mm. CABLE HOLDERInside diameter: 3mmOutside diameter: 3,5mm. FASTENING, NOX SENSOR LINE TO SHIELDInside diameter: 3mmOutside diameter: 3,5mm. A ...

Right control sensor upstream of catalytic converter. Right control probe in front of catalyst. Left control sensor upstream of catalytic converter.

Sensor line mount.

Upstream of particulate filter. Upstream of catalytic converter.

Bleed line. Sensor line. Sensor cable. Line to expansion reservoir holder.

Left. Downstream of SCR catalytic converter N37/5. N37/6.

In wheel arch. 4X20
Diameter: 4mm
Thread code letter: L. Bumper to body. 4X20
Diameter: 4mm
Thread code letter: L. Temperature sensor holder. 4X20
Diameter: 4mm
Thread code letter: L. BRACKET, TEMPERATURE SENSOR. 4X20
Diameter: 4mm
Thread code letter: L. BRACKET MOUNTING. 4X20
Diameter: 4mm
Thread code letter: L.
