Oil Pan & Oil Level Display for 2012 Mercedes-Benz G 550

Vehicle

2012 Mercedes-Benz G 550

Change Vehicle

Categories

Browse Categories

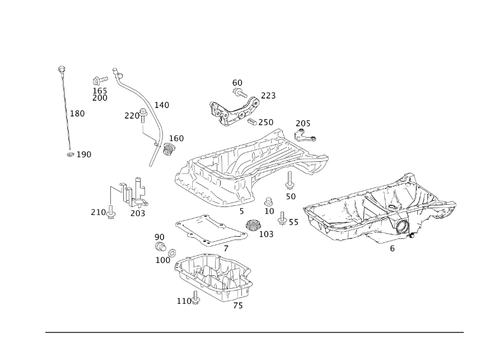

Oil Pan & Oil Level Display for 2012 Mercedes-Benz G 550 #0
No.
Part # / Description / Price
5
Oil Pan
MSRP $376.00
$197.73

Oil Pan, Upper

Validity: This part is valid if at least one of the following applies.
- With series 164 (after 2001-12-07), model series 216 (after 2001-12-07), series 221 (after 2001-12-07), series 251 (after 2002-03-08), or series production 463-cross-country vehicle (after 2006-03-02). without vehicles with 4MATIC®-/ all wheel drive (after 2002-12-02).

50
Hexalobular Bolt
MSRP $3.40
$2.54

M8x30. Front exhaust pipe to transmission M8 x 30. Bracket at transmission rear m 8X30. Bracket to transmission cover. Slave cylinder to transmission case. Cover to transfer case housing m 8X30. From bracket at transmission to clutch slave cylinder m 8X30. Bracket to mounting plate or to transmission. From bracket at transmission to clutch slave cylinder m 6X30.

50
Hexalobular Bolt
MSRP $3.00
$2.29

Accelerator pedal. M6x25.

50
Screw
MSRP $2.80
$2.08

Oil sump on crankcase cover, rear. Oil pan to timing case. Oil pan to cylinder crankcase M6X85.

Validity: This part is valid if at least one of the following applies.
- Without series 164 (after 2001-11-05) and series 251 (after 2001-11-05).
- With series 164 (after 2001-11-05) or series 251 (after 2001-11-05).

75
Oil Pan
MSRP $214.00
$117.12

Lower part.

Validity: This part is valid if at least one of the following applies.
- With series 639-transporter NCV2 (after 2001-11-05) or model series 906-van NCV3 (after 2002-03-07). without vehicles with 4MATIC®-/ all wheel drive (after 2002-10-23).
- With series 164 (after 2001-12-07), series 251 (after 2002-03-08), or series production 463-cross-country vehicle (after 2006-03-02).
- With series 164 (after 2004-03-17) or series 251 (after 2004-03-17).

90
Screw Plug Oil Drain
MSRP $7.00
$5.21

Screw Plug, Filling

Oil drain M14X1.5. Oil pan upper part. At oil pan. Oil pan lower section.

100
110
140
Guide Tube
MSRP $99.00
$54.74

Oil scavenging.

Validity: This part is valid if at least one of the following applies.
- With series 164 (after 2001-11-05) or series 251 (after 2001-11-05).
- With series 164 (after 2001-12-07), series 251 (after 2002-03-08), or series production 463-cross-country vehicle (after 2006-03-02).

160
Gasket, Circumferential
MSRP $1.70
$1.27

Gasket

Suction pipe to oil pan. Validity: This part is valid if at least one of the following applies. - With ((model series 204 (after 2006-04-20) or model series 212 (after 2006-04-20)) and service repositioned (after 2006-05-22)), series 164 (after 2006-04-20 ...

180
Oil Dipstick
MSRP $14.50
$10.92

Validity: This part is valid if at least one of the following applies.
- With series production 463-cross-country vehicle (after 2006-03-02) or V8-gasoline engine M273 (after 2006-05-09).

190
O-Ring

Oil dipstick. 12X2. Validity: This part is valid if at least one of the following applies. - Without vehicles with 4MATIC®-/ all wheel drive (after 2002-10-23), chassis with 4X2 drive (after 2007-01-23), series 251 (after 2001-11-05), and series 164 ( ...

Discontinued
200
203
Bracket
MSRP $31.00
$23.50

Oil level contactor.

Validity: This part is valid if at least one of the following applies.
- With series 639-transporter NCV2 (after 2001-11-05) or model series 906-van NCV3 (after 2002-03-07). without vehicles with 4MATIC®-/ all wheel drive (after 2002-10-23).
- With series 164 (after 2001-12-07), series 251 (after 2002-03-08), or series production 463-cross-country vehicle (after 2006-03-02).
